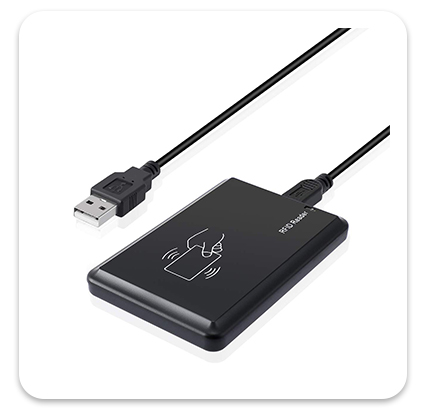

RFID CARD READER

₹750 /- (incl GST)

Product description

Packing list:
1*LAMMU Rfid Card Reader
1*USB cable

Product Description:
ID card reader can read the top 10 digital
Material: Hard Plastic
USB cable connection to PC (Plug and Play, Driverless for Windows 2000, 2003, XP, Vista, Windows7, Linux)
Can read all 125Khz RFID EM4100 EM410X Card/Tag
Product technical index Communication:Standard HID Signal
Communication Interface: full speed USB Device
interface,compatibleUSB V2.0 Power
Supply mode:USB Universal serial bus interface power supply
Working frequency:125 KHz.
Maximum induction distance:3-8CM;- Support
Card type: EM Series,4001 Compatible RFID card
Power consumption: less than 0.5 W
Exterior dimension:110 x 80 x 30MM.
Usage environment: temperature 0–50C
Humidity:50-95RHP ressure:88-106Kpa.

Instructions for use
Method of installation and use
1. Connect with computer through USB interface directly. When the buzzer sounded, reader into the self-inspection. And the same time, LED turn into red means standby.
2. Open the output of computer software,such as Notepad\a word document or Excel sheets.
3. The mouse in Notepad or WORD document clicking.
4. Put tag on the top of reader, the software will output a data(card number) of the tag. When reading the tag, LED light change from red to green.

Detecting device is connected:
Open the Device Manager of computer, If appears Humans Input Device that means Reader has successfully into computer.

Precautions
1. Do not install the reader on the magnetic objects and metal objects, they will seriously affect the RF signal.
2. If after reading, the tag is still in the induction zone, the RF reader will not send data and without any hints.

Common problems
Operation without feedback: Please check whether the interface plugged in, whether the tag is a valid or whether another RF

Add to wishlist

Share with:

FacebookTwitterLinkedInEmail this pagePrint this pageWhatsapp


Category:

Description

  • LANMU Rfid Card Reader is a USB interface driver-free reader is a high-performance computer external input device that can read out the serial number of the RFID card and output to the computer through the uSB port according to the specified format without additional procedures.
  • Simple and fast read card,can be read in any number, this function is suitable for extended functionality in existing software, without any modification to the original software.
  • Can connect computers and Android devices(only the usb interface can),Rfid Card Reader is connected to the PC computer device and through Word or Notepad recorded the card number.Android device requires an OTG adapter.
  • Application scope: Membership management, identification of occasions, such as: clubs, schools, government, enterprises, social security, charge management, Internet cafes, etc.
  • Lifetime Warranty:LANMU offer satisfactory service for every purchase of Rfid Card Reader that send a or if there is anything wrong,making sure the no risk shopping for customers.
